Independent heavy-vehicle dossier
Designwerk Mid Cab
The same battery menu as the High Cab — from 340 to 1000 kWh — but on a Volvo FM chassis and for distribution work.

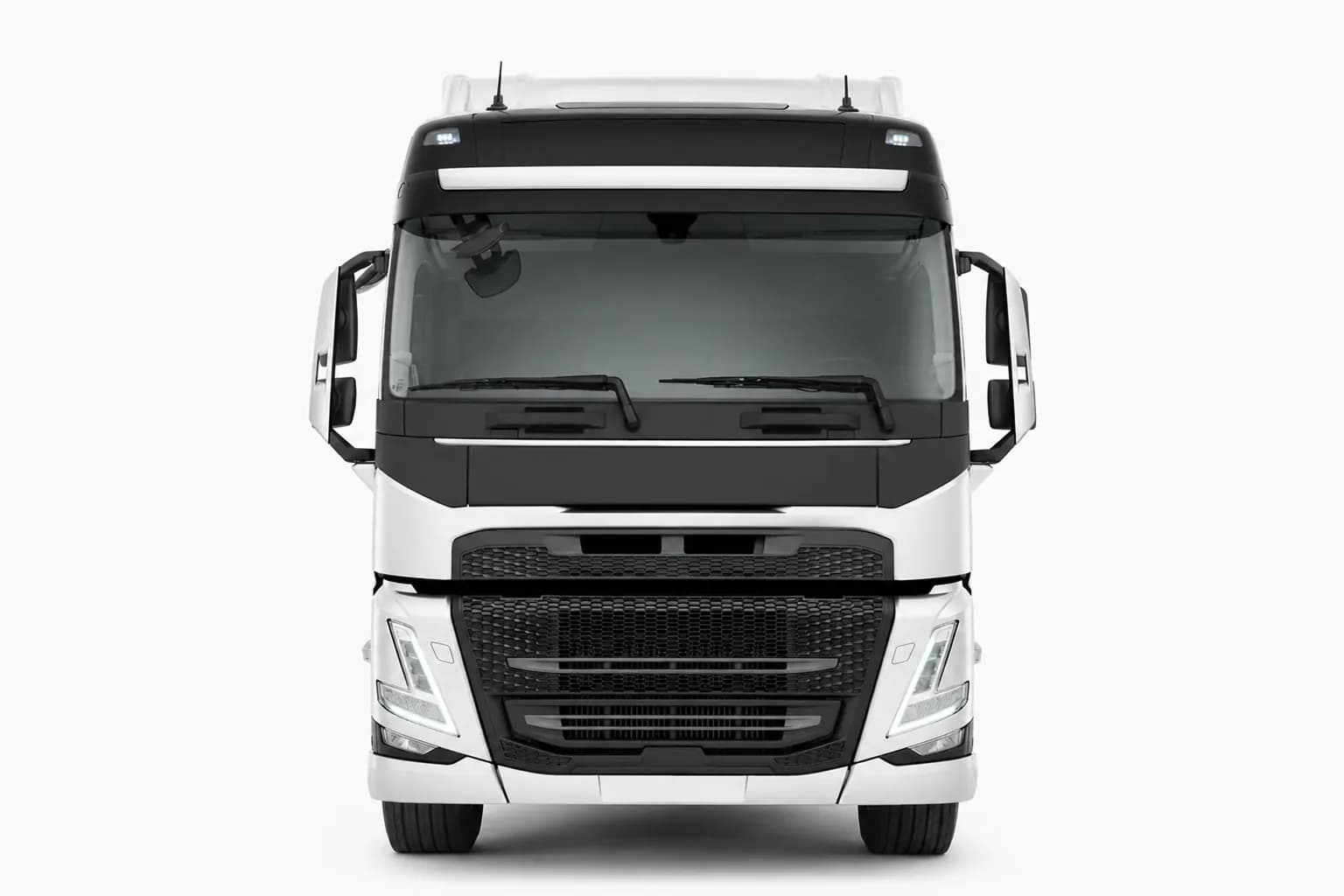

Image 1 of 2
730 km
Range
manufacturer claim
350 kW
DC charging
40 t
Combination weight
864 kWh
Usable battery
Designwerk Mid Cab
Buying decision
The EvCompass verdict
The key arguments drawn from the published data and the EvCompass editorial summary.
Designwerk publishes installed and usable capacity separately, which most manufacturers in this database do not — 1000 kWh gross is 864 kWh usable, and that openness is worth more here than the pack size itself. The 340 kWh LFP version is cheaper and longer-lived, the NMC versions lighter per kilowatt-hour. The choice depends on whether you are counting kilometres or years.
Strengths
- Quotes installed and usable capacity separately.
Weaknesses
- The 1,000 kWh gross pack provides 864 kWh usable, so the capacity name alone overstates the energy available for driving.
The full picture
Specifications
Manufacturer-published facts grouped by the decisions they inform, without raw source headings.
Battery and charging
- Usable battery
- 864 kWh
- Gross battery
- 1,000 kWh
- DC charging
- 350 kW
- On charging
- AC Type 2 44 kW (7.4-19.6 h to 100 %); CCS Type 2 150 kW (1.5-4 h, 10-80 %); CCS Type 2 350 kW (0.9-1.7 h); MCS ~0.7 h (10-80 %) on the 750 and 1000 kWh packs. No MCS peak kW published for this model.
Powertrain
- Powertrain
- Battery electric
- Peak power
- 500 kW
Mass and load
- Combination weight
- 40,000 kg
- Gross vehicle weight
- 40,000 kg
Market and year
- Model year from
- 2,023
- Markets
- EU, CH
- Production status
- In production
- Vehicle class
- N3
- Measurement basis
- manufacturer, up to 730 km with the 1000 kWh pack in logistics duty without a trailer
These are manufacturer-published figures gathered through EvCompass research.
Price and availability
What it costs and whether it is available in Poland
Published price evidence and the Polish availability answer, kept together for a buying decision.
The manufacturer publishes no price for this vehicle.
In heavy transport that is the rule rather than the exception — makers quote on request.
No list price published.
Poland
Polish availability not established
No Polish dealer found; Designwerk's named markets are Switzerland, DACH, Scandinavia and Benelux.
Charging infrastructure
Recommended chargers
Chargers matched to the vehicle's published power or to a clearly stated duty profile when that figure is missing.
This vehicle charges at up to 350 kW DC — the chargers below are matched to that figure.
- Power
- 360 kW
- Price
- PLN 307,500
- Power
- 160–240 kW
- Price
- from PLN 189,511–217,254
Sources and research
Research notes
The sources and research notes behind the figures, claims and editorial assessment.
Volvo FM-based distribution and municipal e-truck. Battery menu identical to the High Cab: 340 LFP (323 usable) / 375 NMC (324) / 500 NMC (432) / 750 NMC (648) / 1000 NMC (864). Ranges without trailer: 250 / 275 / 365 / 550 / 730 km. Axle configurations and weights: 4x2R 18-26 t, 6x2R 26-32 t, 8x2R and 8x4R tridem or tandem 32 t, 10x4R 40 t GVW, and 4x2T/6x2T/6x4T semi-tractor at 40 t GCW. gvwKg 40000 records the 10x4R top of the rigid range; the majority of Mid Cab builds are 18-32 t. IMAGE GAP: only two verified Designwerk-hosted images; the press media package is the route to more.
Data confidence
HIGH
