Independent heavy-vehicle dossier
Designwerk Low Cab
508 kWh and 200 km at a consumption of 209 kWh per 100 km — the Low Cab is a refuse chassis and its numbers must be read that way.

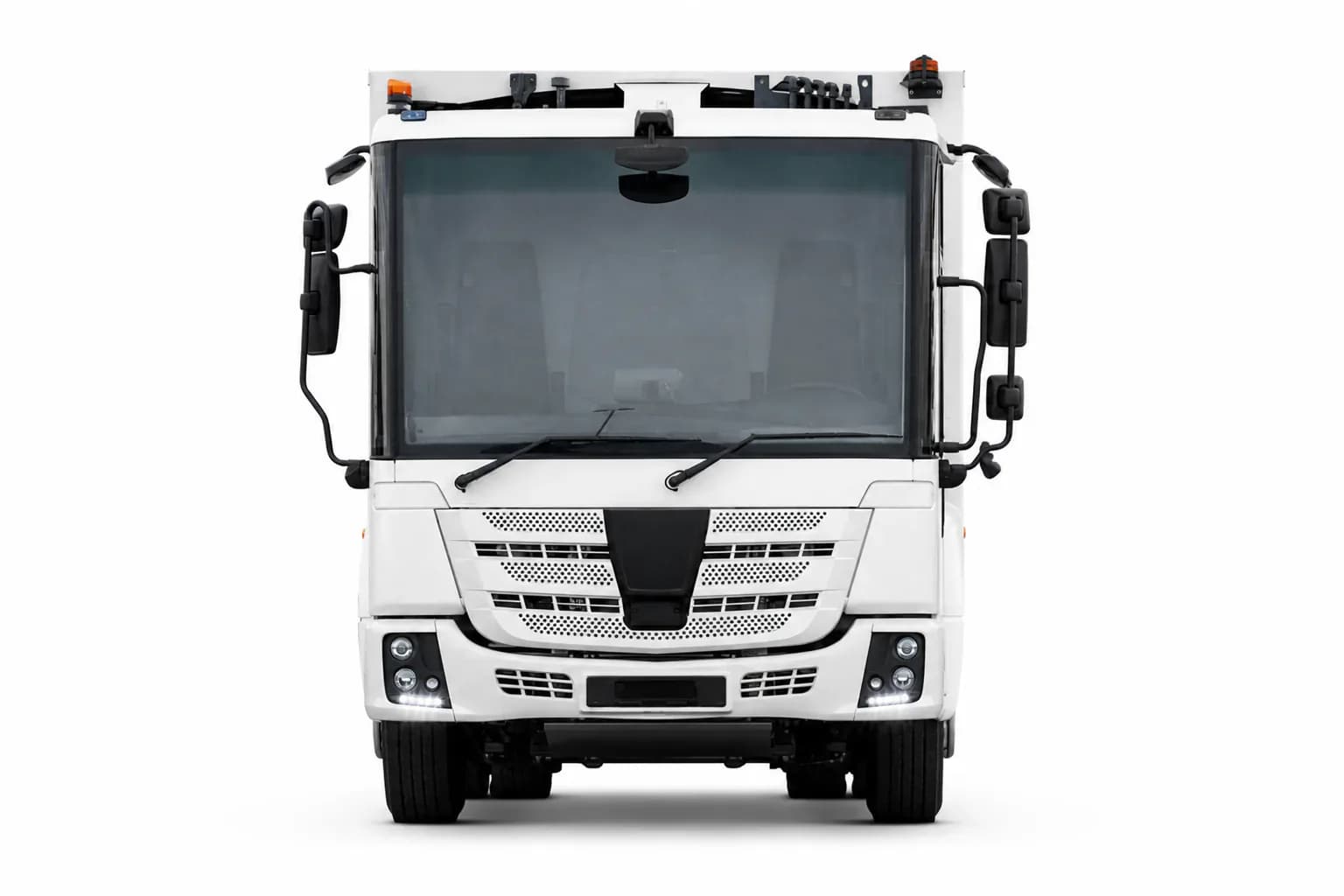

Image 1 of 2
200 km
Range
manufacturer claim
350 kW
DC charging
432 kWh
Usable battery
6x2
Axle configuration
Designwerk Low Cab
Buying decision
The EvCompass verdict
The key arguments drawn from the published data and the EvCompass editorial summary.
A consumption of 209 kWh per 100 km looks dramatic next to a long-haul tractor, but it describes work where the vehicle stops every few dozen metres and powers a body — here the measure is not kilometres but the number of collection points served. The low entry is a crew-safety requirement, not styling. Built on the Mercedes Econic platform.
Strengths
- A 432 kWh usable battery and 350 kW DC charging give the Low Cab a concrete heavy-body profile.
Weaknesses
- A 200 km range at 209 kWh/100 km shows that this configuration pays for heavy work in energy use.
The full picture
Specifications
Manufacturer-published facts grouped by the decisions they inform, without raw source headings.
Battery and charging
- Usable battery
- 432 kWh
- Gross battery
- 508 kWh
- DC charging
- 350 kW
- Consumption
- 209 kWh/100 km
- On charging
- 375 pack: AC 44 kW 7.4 h to 100 %, CCS 150 kW 1.5 h (10-80 %). 500 pack: AC 44 kW 9.8 h, CCS 150 kW 2.0 h, CCS 350 kW 0.9 h.
Powertrain
- Powertrain
- Battery electric
- Peak power
- 500 kW
- Axle configuration
- 6x2
Mass and load
- Gross vehicle weight
- 28,000 kg
Market and year
- Model year from
- 2,023
- Markets
- EU, CH
- Production status
- In production
- Vehicle class
- N3
- Measurement basis
- manufacturer, up to 200 km with the 500-class pack at the quoted LC Collect refuse-duty consumption of 209 kWh/100 km; the 375 pack gives up to 150 km
These are manufacturer-published figures gathered through EvCompass research.
Price and availability
What it costs and whether it is available in Poland
Published price evidence and the Polish availability answer, kept together for a buying decision.
The manufacturer publishes no price for this vehicle.
In heavy transport that is the rule rather than the exception — makers quote on request.
No list price published.
Poland
Polish availability not established
No Polish dealer found.
Charging infrastructure
Recommended chargers
Chargers matched to the vehicle's published power or to a clearly stated duty profile when that figure is missing.
This vehicle charges at up to 350 kW DC — the chargers below are matched to that figure.
- Power
- 360 kW
- Price
- PLN 307,500
- Power
- 160–240 kW
- Price
- from PLN 189,511–217,254
Sources and research
Research notes
The sources and research notes behind the figures, claims and editorial assessment.
Low-entry municipal/refuse chassis on the Mercedes Econic platform - the current production successor to the Futuricum Collect 26E. Only two battery sets are offered: 381 kWh installed / 324 usable, and 508 / 432 (85 % release rate). GVW up to 28 t, base 6x2R. Designwerk's overview page still shows the Low Cab front render as a placeholder file ('Low-Cab-Front-1136x1136px-platzhalter.jpg'), which I have deliberately not listed as a reference image.
Data confidence
HIGH
